Raspberry Pi Pico as MIDI to CV converter

Raspberry Pi Pico as MIDI to CV converter

I’ve been toying with the idea of building a MIDI to CV converter for at least a decade. Now I’ve finally had a go using MicroPython on the Raspberry Pi Pico.

Here’s how I managed to control my Moog Werkstatt-01 over MIDI using the Pico, a handful of components and a MCP4725 12-bit DAC:

https://youtu.be/aGfQHL1jU4I

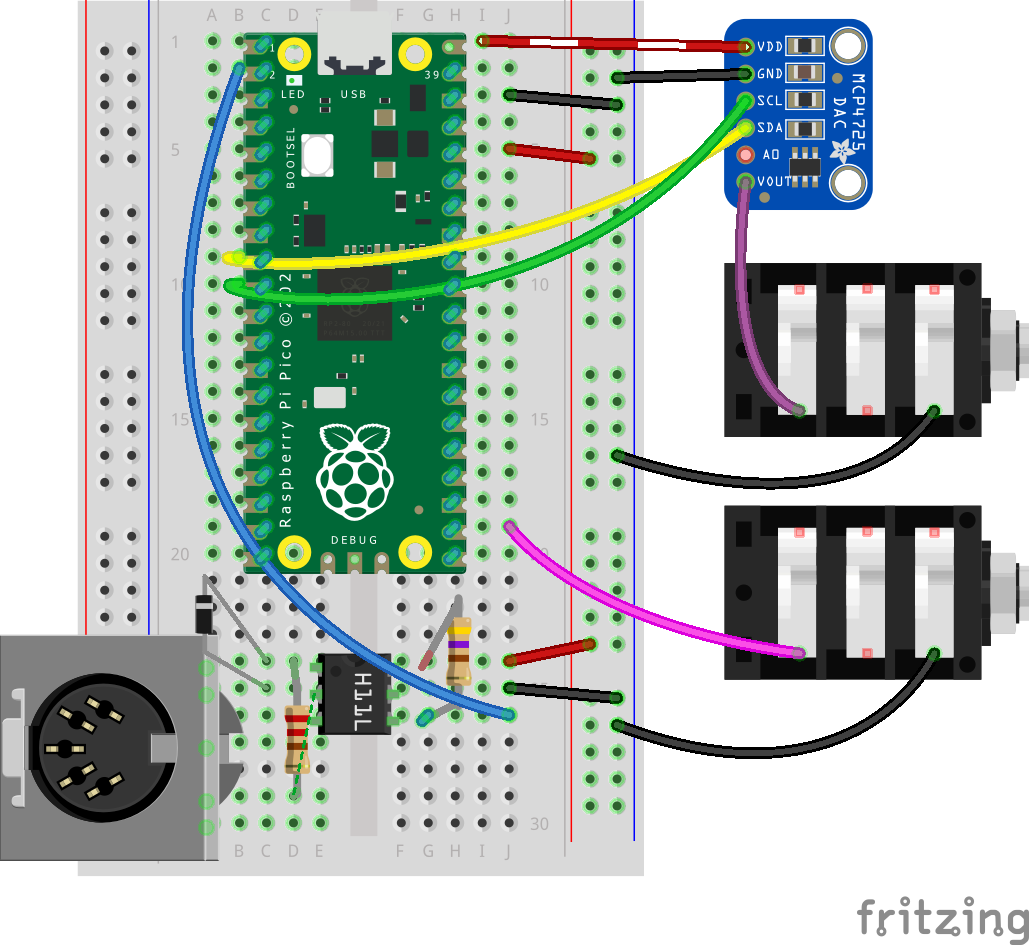

The Hardware

BOM

  • Raspberry Pi Pico
  • HC11L optocoupler
  • 220Ω Resistor
  • 470Ω Resistor
  • small signal diode (eg 1N914)
  • MCP4725 module

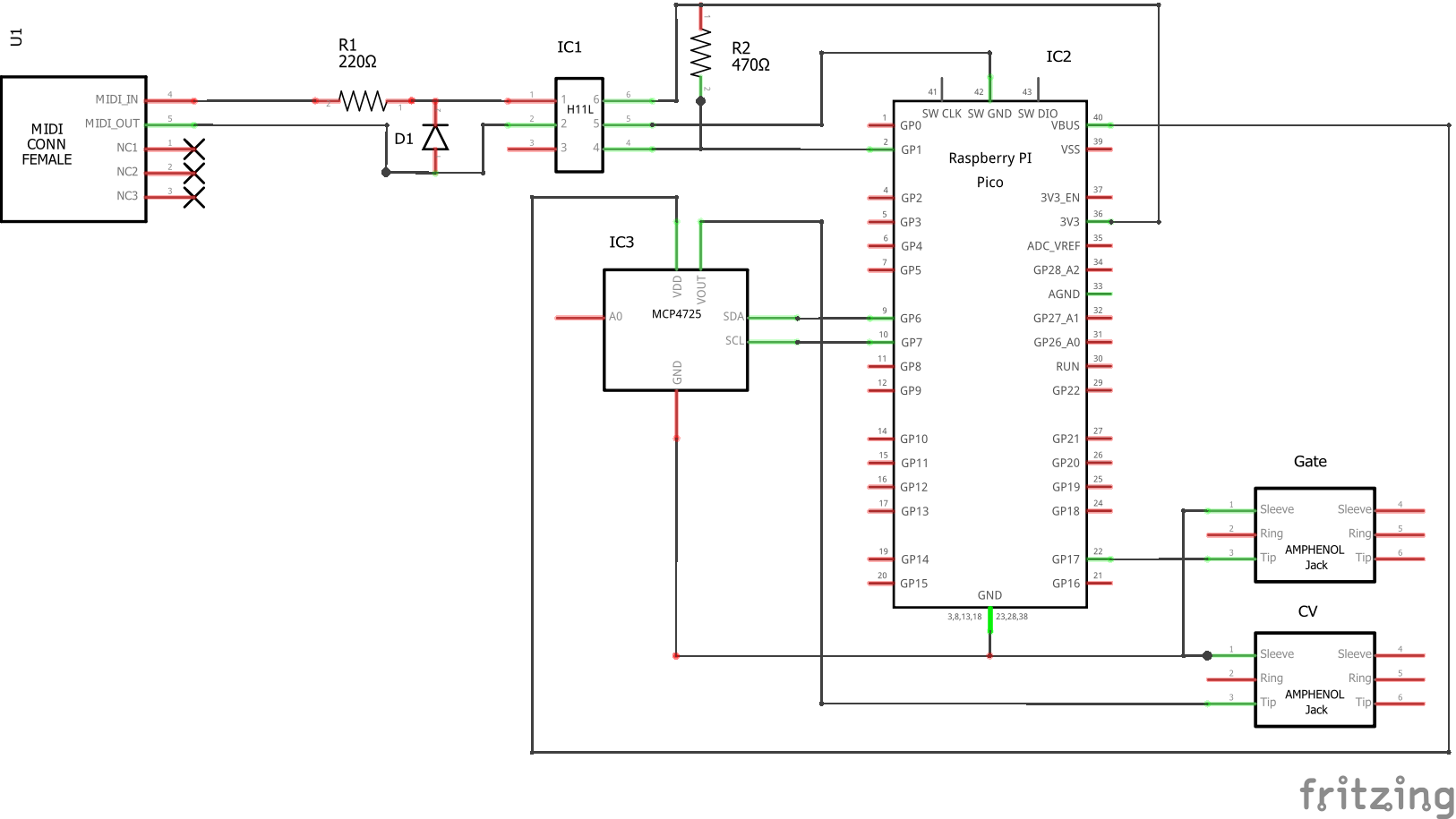

Circuit Diagram

The Code

The code is written in Micropython. Its only external dependency is the SimpleMIDIDecoder class by @diyelectromusic. You can download the latest version on GitHub here: SimpleMIDIDecoder.py.

https://gist.github.com/axwax/84dc05a1966a788cd8e69e324a0757d2
